dcp_2089

Picture Details
File Type Paint Shop Pro 5 Image
File Size 137K
Dimensions 1760x1168

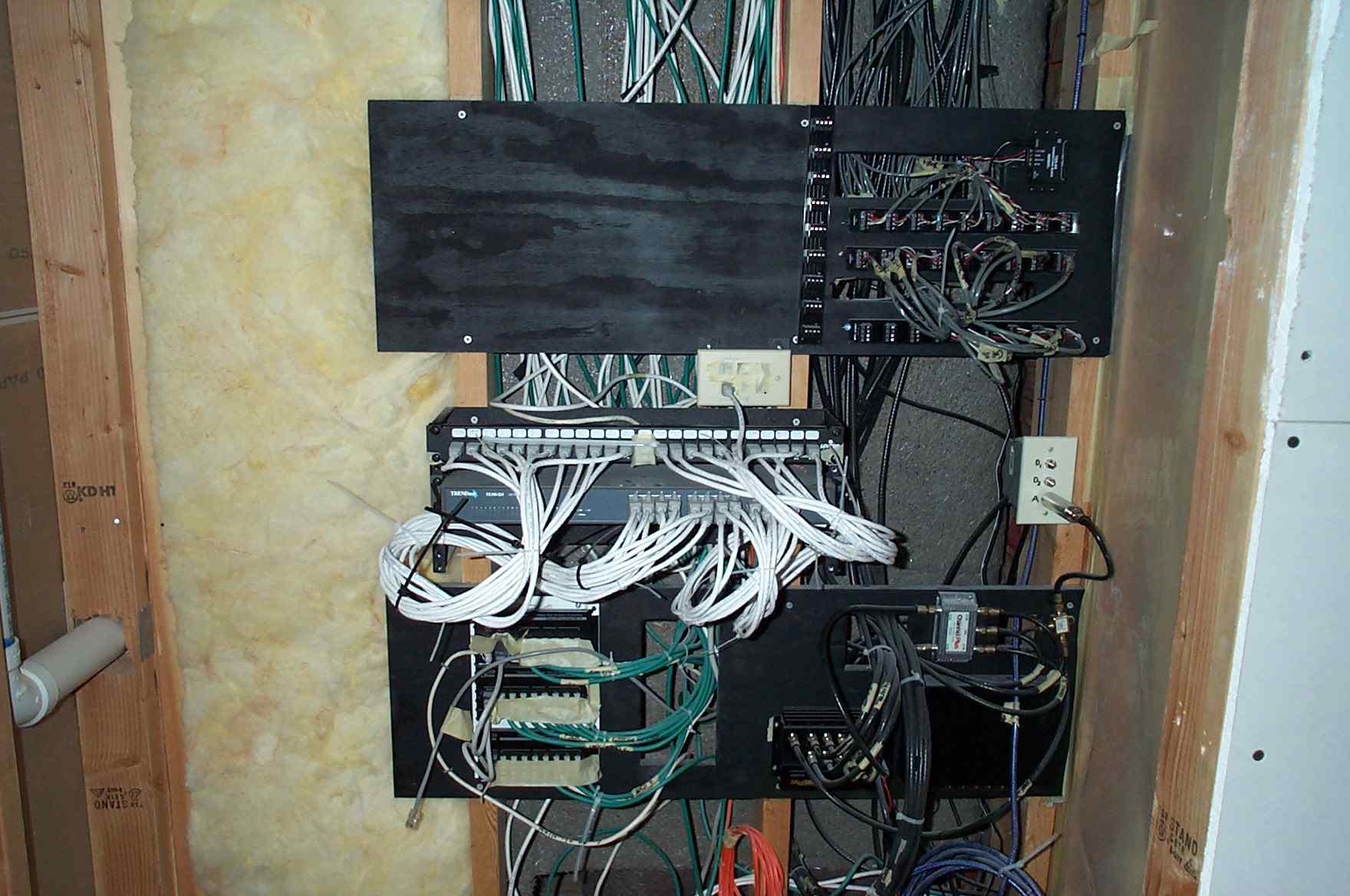

Description This is the finished multimedia panel in the multimedia wiring closet. Clockwise from top-right is the IR distribution, Audio distribution, Antenna channel blk and amp, 4 port stereo modulator, 4x1 combiner, 3x8 amplified video distribution, 22 point 4 line phone distribution and Alarm panel connection, 24 port network switch, 27 port CAT6 patch panel, Weather station feed.

Picture Details
File Type	Paint Shop Pro 5 Image
File Size	137K
Dimensions	1760x1168
Description	This is the finished multimedia panel in the multimedia wiring closet. Clockwise from top-right is the IR distribution, Audio distribution, Antenna channel blk and amp, 4 port stereo modulator, 4x1 combiner, 3x8 amplified video distribution, 22 point 4 line phone distribution and Alarm panel connection, 24 port network switch, 27 port CAT6 patch panel, Weather station feed.

First - Previous - Next - Last

Return to november26

Additional Detail for dcp_2089.jpg/Gary Zimmerman/gary@z.to
